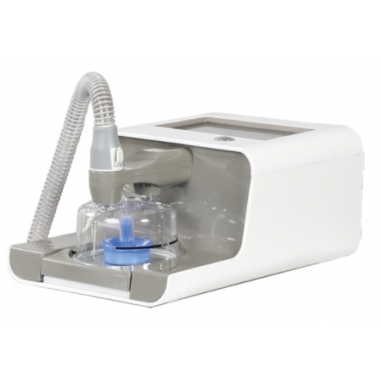

High-flow humidified respiratory devices deliver a mixture of air and oxygen with high flow rates, precise oxygen concentration, and active warming and humidification through nasal or tracheal interfaces. This rapidly flushes out anatomical dead space and significantly improves the patient’s oxygenation index,thereby achieving therapeutic effects for various types of respiratory diseases.

The device can deliver warmed and humidified gas at 31–37°C with absolute humidity of 32–44 mg H₂O/L. The flow system supports rates from 5 to 70 L/min, and features built-in integrated oxygen concentration monitoring with precise adjustment ranging from 21% to 100%. It offers a revolutionary new approach to clinical treatment with significant medical implications and value.

Product performance:

  1. High quality imported turbine fan ensures continuous and stable output of air oxygen gas. 5-70L/min ultra large flow output, supporting high flow mode and low flow mode.

  2. The ultra sensitive integrated oxygen concentration detection system has a regulation range of 21-100%.

  3. Real time monitoring of blood oxygen saturation, monitoring the oxygenation efficacy of patients after treatment at any time.

  4. The device comes with disinfection function to prevent cross infection. Real time disinfection status monitoring and display.

  5. High precision temperature and humidity control system, intelligent adjustment of temperature and humidity, with a temperature adjustment range between 31-37 ℃. Up to 100% relative humidity.

  6. The 7.1 inch large touch color screen is convenient and fast to operate, with automatic screen locking function to ensure safety and prevent accidental touch.

  7. Multiple alarm functions ensure safe use. Pipeline detection and blockage prompt; Reminder of humidifier water shortage; Gas temperature detection prompt; Power outage prompt; Reminder of treatment usage time, etc.

  Applicable departments:

   This product can be widely used in ICU, emergency department, respiratory department, Neurology department, Neurosurgery department, cardiology department, general surgery department, pediatrics department, burn department, oncology department, orthopedics department and other departments that need respiratory humidification, oxygen therapy and non-invasive positive pressure ventilation support.

  Indications:

  Patient Benefits:

  Accurate oxygen supply: Ensure constant inhalation oxygen concentration and effectively improve hypoxemia.

  Flushing the dead space of the nasopharynx: effectively reducing the repeated inhalation of carbon dioxide by patients.

  Positive airway pressure: effectively prevents alveolar atrophy, increases functional residual air volume, and reduces respiratory work.

  Airway humidification: Effectively improve the patient's mucociliary clearance function and promote the humidification and discharge of sputum.

  Comfort experience: Effectively improving patients' comfort and tolerance, and enhancing compliance.

  System parameters:
